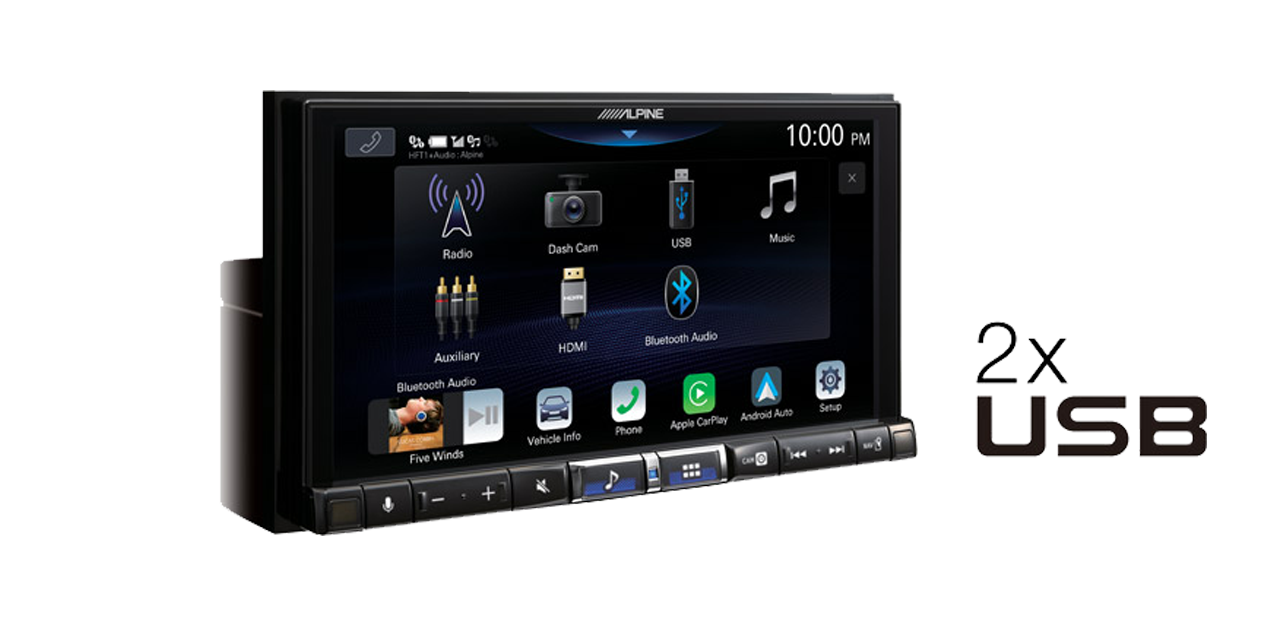

Alpine iLX-507A DAB+ Receiver
    •
    The Alpine iLX-507A next-in-line to the award-winning Alpine iLX-702D Digital Media Station. This new generation includes many improvements, such as a much higher screen resolution, wireless Apple CarPlay, 2 USB ports, as well as a built-in Class-D amplifier and Hi-Res Audio capabilities.

    If you look for a high-performance 2DIN system for your car that includes all the latest features, cutting-edge media compatibilities and killer sound quality, the Alpine iLX-507A is for you.

    Bring exceptionally good sound quality into your vehicle: the Alpine iLX-507A is among the world’s first Head Units featuring a built-in Class-D amplifier and has a wide array of professional sound tuning functions, such as digital X-overs, a Parametric EQ, digital time correction and much more.


    Alpine iLX-507A DAB+ Receiver

    SKU: iLX-507A
    $1,099.95 Regular Price
    $989.96Sale Price

    • Screen

      • Screen Size
        • 7-inch Capacitive WXGA
      • Number of Picture Elements
        • 2,764,800 pixels (1280 x 3 x 720)
      • Illumination System
        • White LED Backlighting
      • Effective Number of Picture Elements
        • 99.99%
      • Colour System
        • NTSC, PAL

      Max Power Output Ratings

      • Max Power Output
        • 4x 50 W

      Radio / DAB Tuner

      • FM Tuning Range
        • 87.5 - 108.0 MHz
      • AM Tuning Range
        • 531 - 1,602 kHz
      • DAB band III
        • 174 – 240 MHz
      • Alternate Channel Selectivity
        • 80 dB
      • Signal-to-Noise Ratio
        • 65 dB
      • DAB audio format
        • DAB/MPEG 2, DAB+/AAC, DMB Profile 1/BSAC/DMB profile 2/AAC

      WiFi

      • Reception Frequency
        • IEEE 802.11 B/g/n (2.4 GHz)
      • Channels
        • 1 – 13 ch (2.4 GHz)
      • Security Protocols
        • WPA3/WPA2-PSK (TKIP, AES)

      USB

      • USB Requirements
        • USB 2.0
      • USB 1
        • data port / 2,400 mA (Mass Storage Class)
      • USB 2
        • charging port / 1,500 mA (CDP support)
      • USB Class
        • Mass Storage Class, Play From Device
      • File System
        • FAT16 / FAT32 / exFAT
      • FLAC, MP3, WMA, AAC, WAV, APE Decoding
      • Video Playback
        • MP4, MOV, FLV, MKV compatible
      • Supported Video Coding
        • MPEG-4/H.264 (MPEG-4/AVC)/MPEG-1/MPEG-2
      • Number of Channels
        • 2-Channel (Stereo)
      • Frequency Response
        • 5 - 40 kHz ±1 dB *Frequency Response may differ depending on the encoder software/bit rate
      • Total Harmonic Distortion (at 1 kHz)
        • 0.005%
      • Dynamic range(at 1kHz)
        • 95 dB
      • Signal-to-Noise Ratio
        • 95 dB

      GPS / Glonass

      • GPS / Glonass compatible navigation antenna included
      • GPS frequency
        • 1575.42 +/- 1.023 MHz
      • Reception sensitivity (search)
        • - 136 dB max

      BLUETOOTH®

      • BLUETOOTH® Version
        • Bluetooth V4.2
      • Output Power
        • +4 dBm Max. (Power class 2)
      • HFP (Hands-Free Profile)
      • OPP (Object Push Profile)
      • PBAP (Phone Book Access Profile)
      • HSP (Head Set Profile)
      • A2DP (Advanced Audio Distribution Profile)
      • AVRCP (Audio/Video Remote Control Profile)
      • SPP (Serial Port Profile)
      • Supports LDAC Audio Codec

      Sound Tuning

      • Subwoofer Level Adjustment
        • 0 to +15
      • Subwoofer Phase Setting
        • 0° or 180°
      • BASS ENGINE SQ
        • 5 Modes, Level 0 to +6
      • For detailed sound setting bands and frequencies please see the owner’s manual PDF below in the SUPPORT section

      HDMI Section

      • Input Format 720p / 480p / VGA

      General

      • Power Requirement
        • 14.4 V. DC (11-16V allowable)
      • Pre Output Voltage (Before Clipping)
        • 4 V / 10k ohms

      Dimensions

      • Weight
        • 1.4 kg
      • Chassis Size (W x H x D) mm
        • 178 x 50 x 150 mm
      • Display Size (W x H x D) mm
        • 171 x 96 x 18 mm
